Installation Schematics

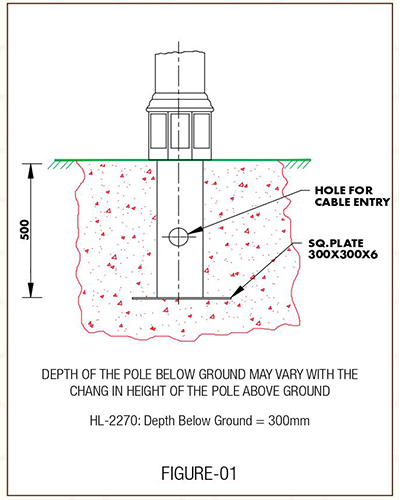

figure-01

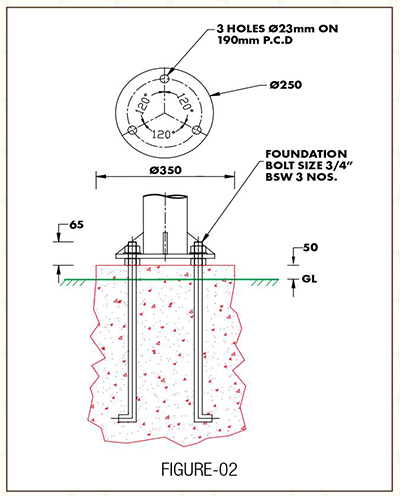

figure-02

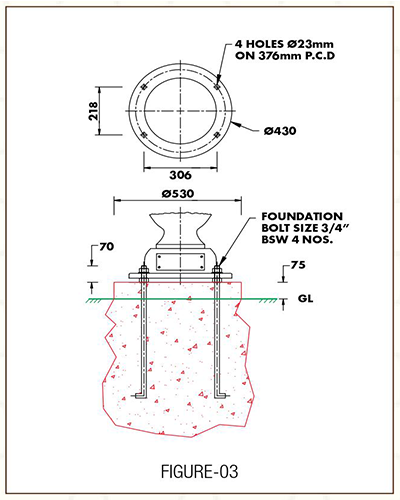

figure-03

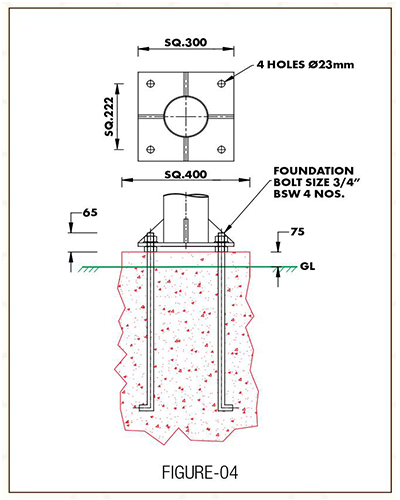

figure-04

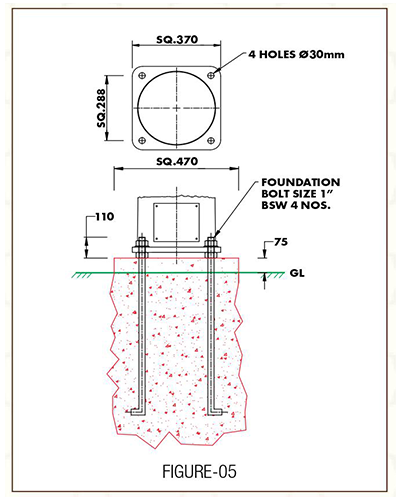

figure-05

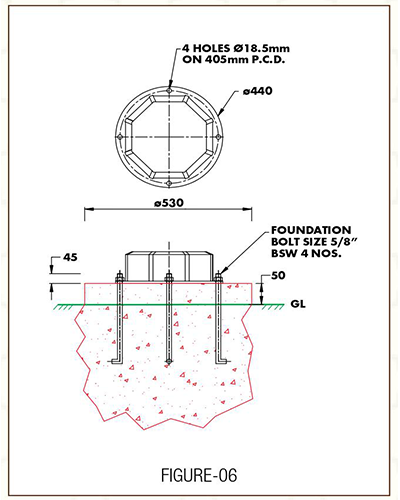

figure-06

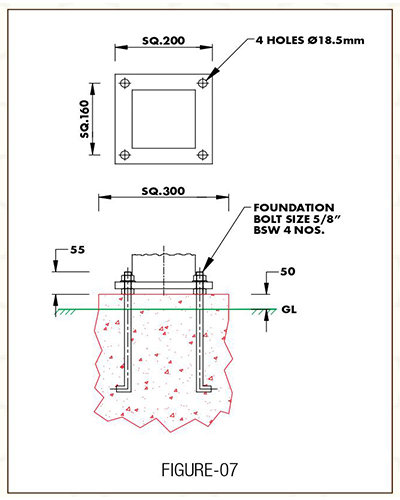

figure-07

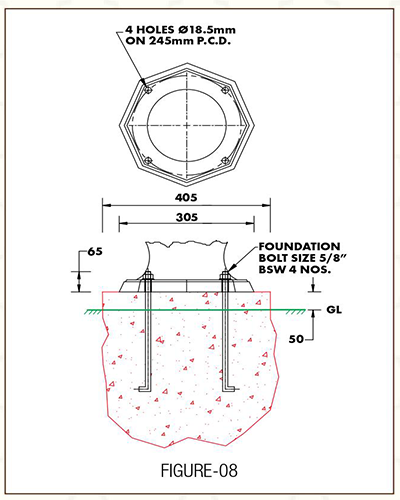

figure-08

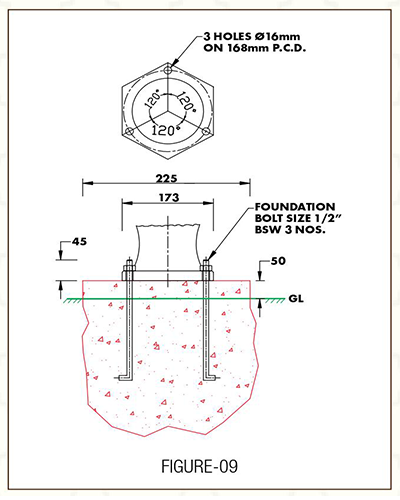

figure-09

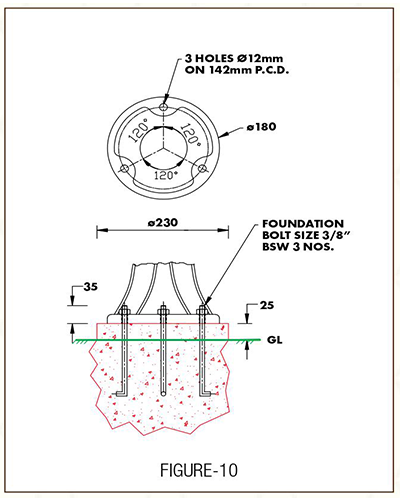

figure-10

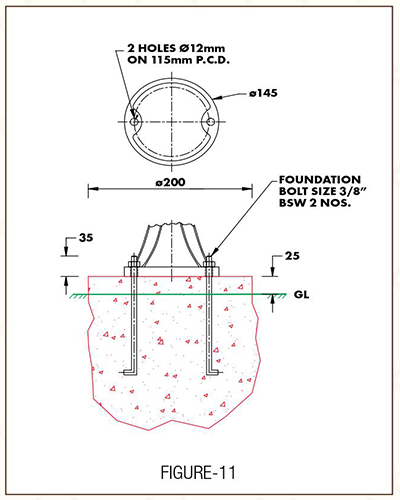

figure-11

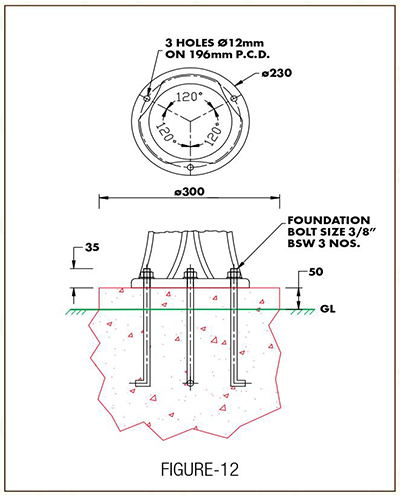

figure-12

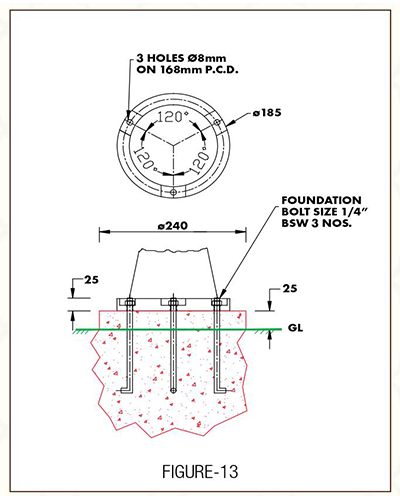

figure-13

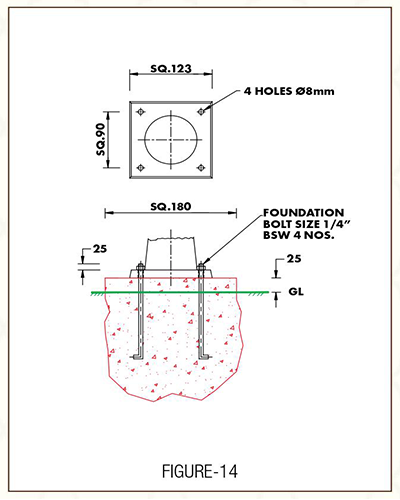

figure-14

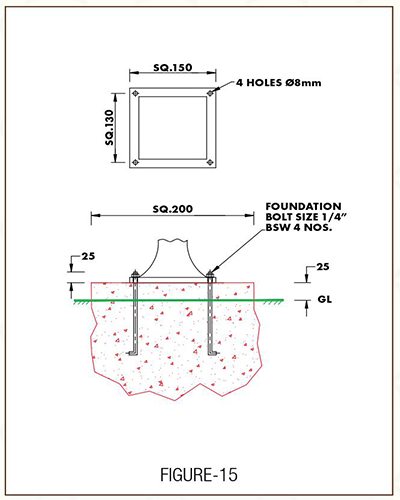

figure-15

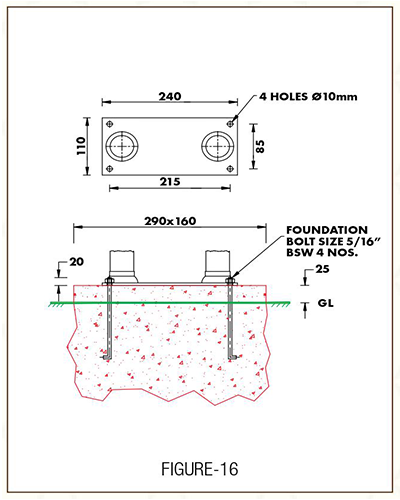

figure-16

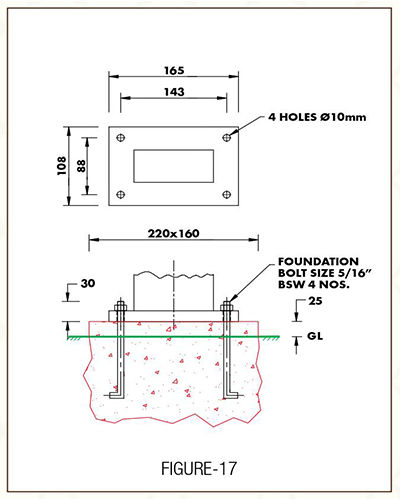

figure-17

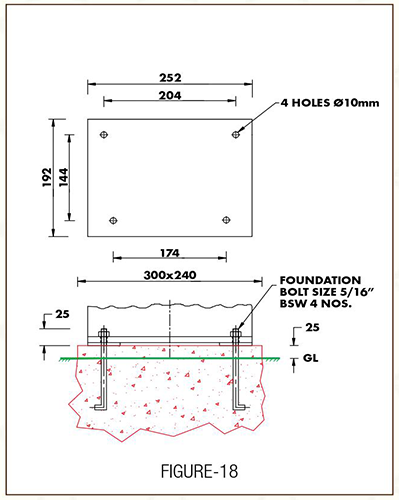

figure-18

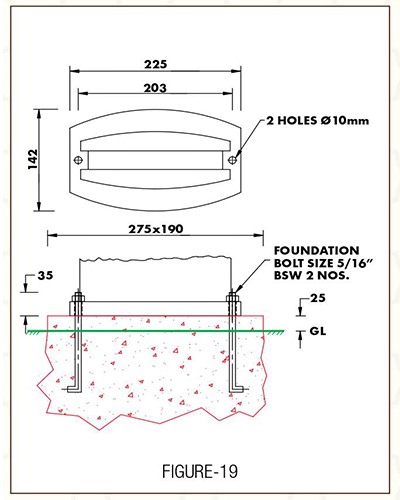

figure-19

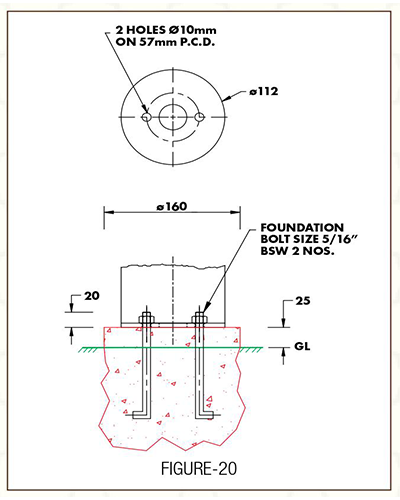

figure-20

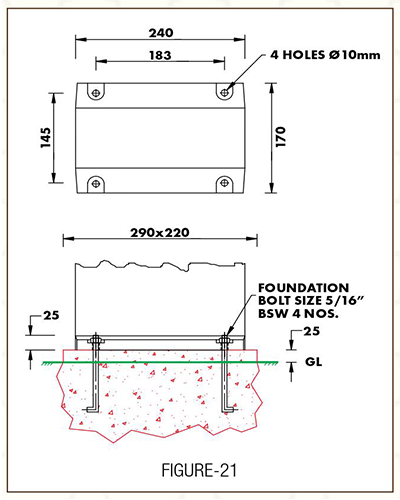

figure-21

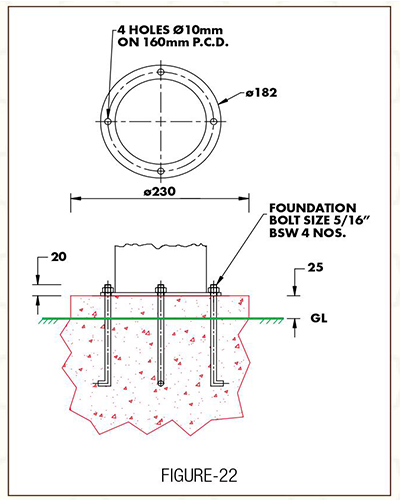

figure-22

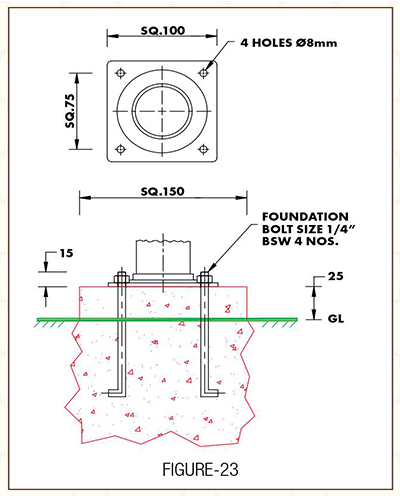

figure-23

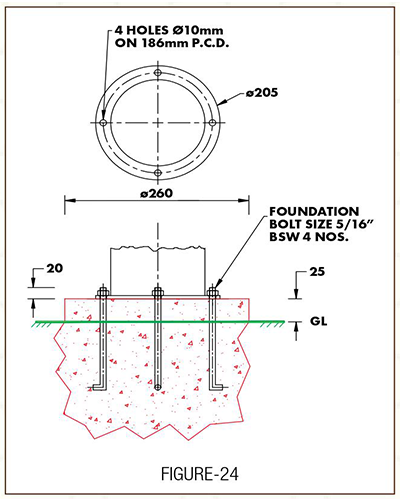

figure-24

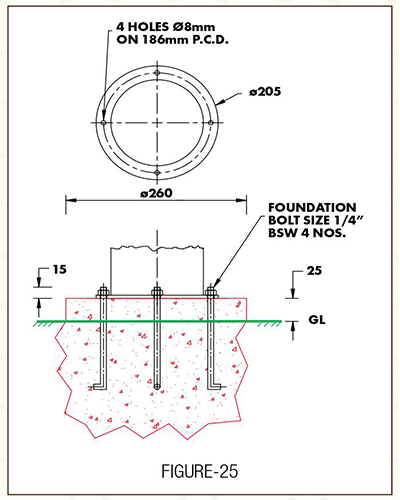

figure-25

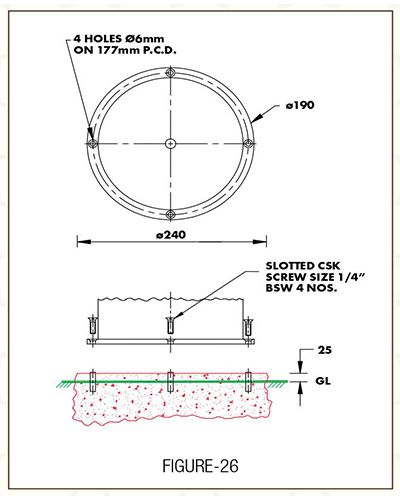

figure-26

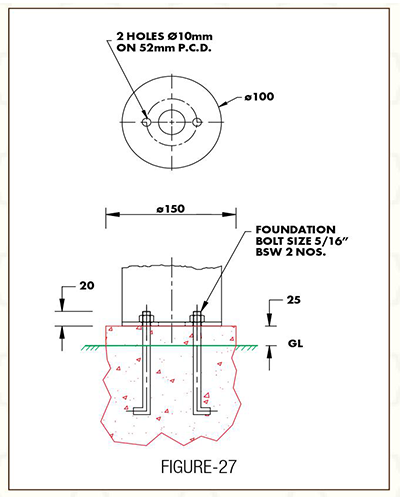

figure-27

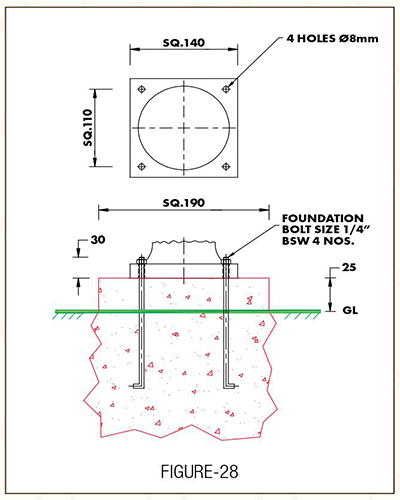

figure-28

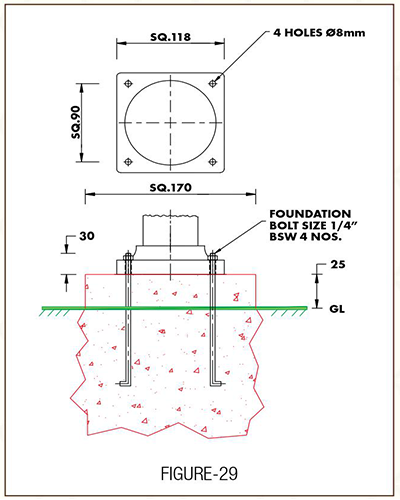

figure-29

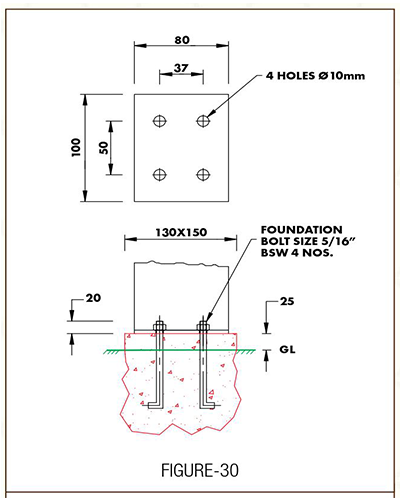

figure-30

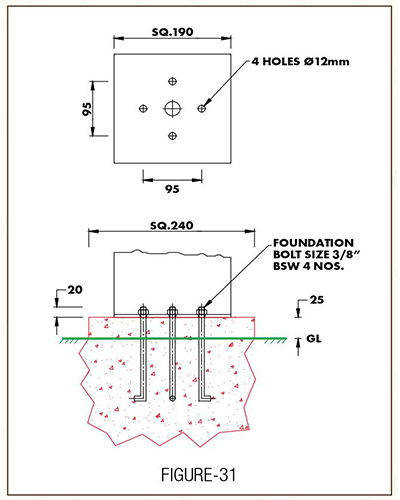

figure-31

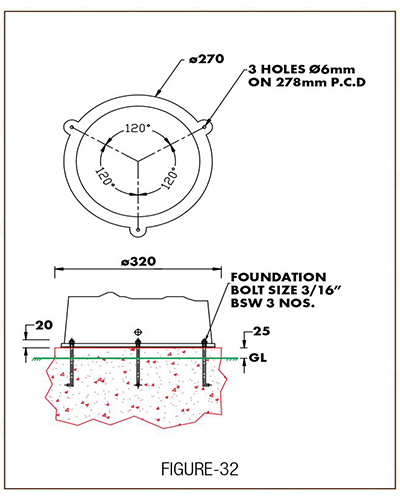

figure-32

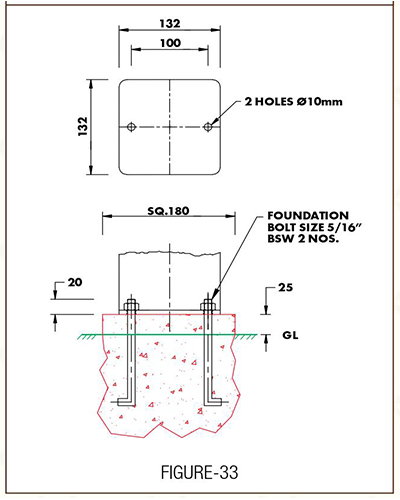

figure-33

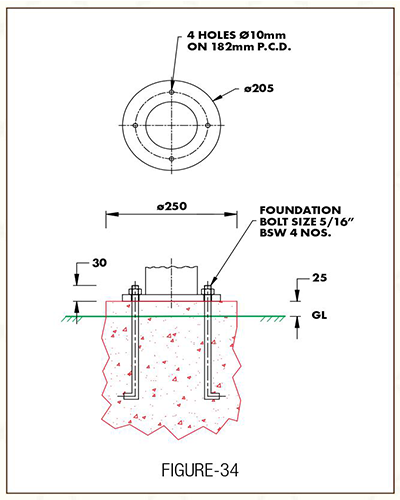

figure-34

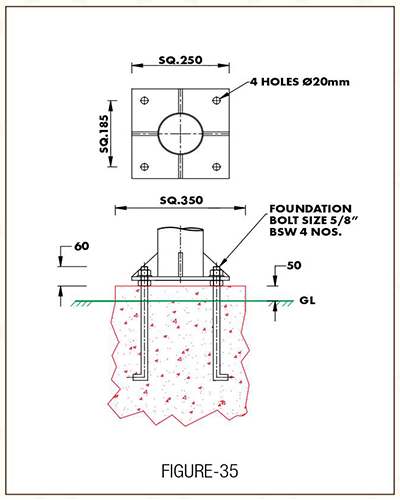

figure-35

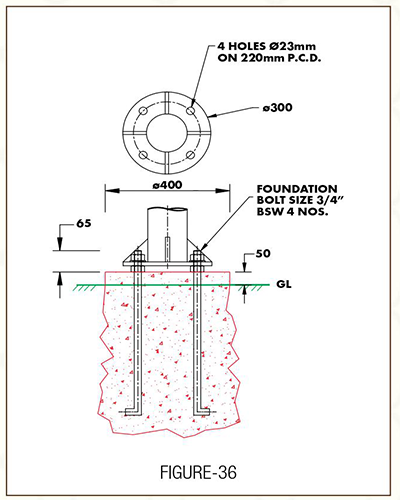

figure-36

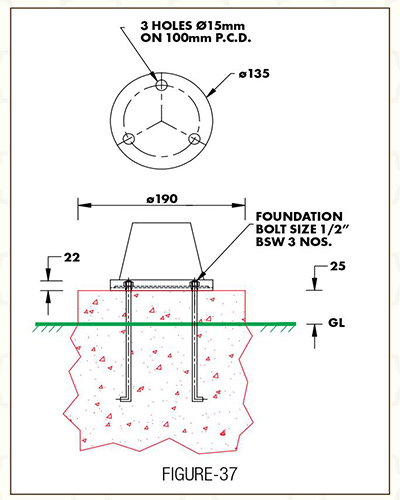

figure-37

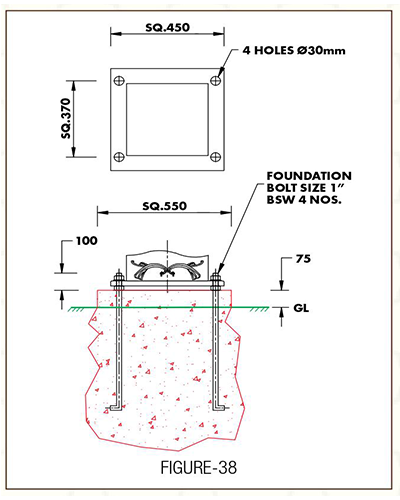

figure-38

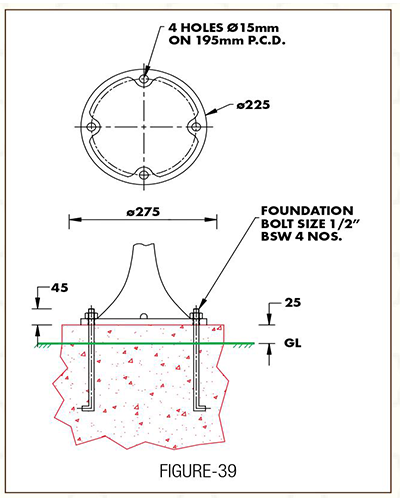

figure-39

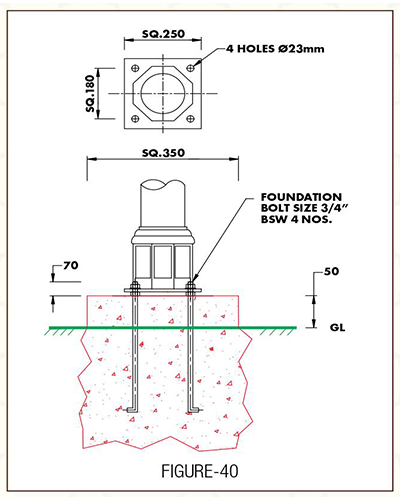

figure-40

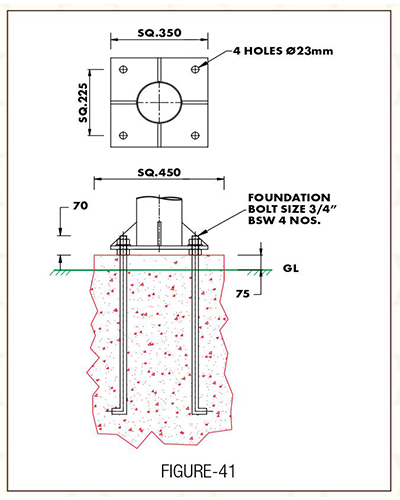

figure-41

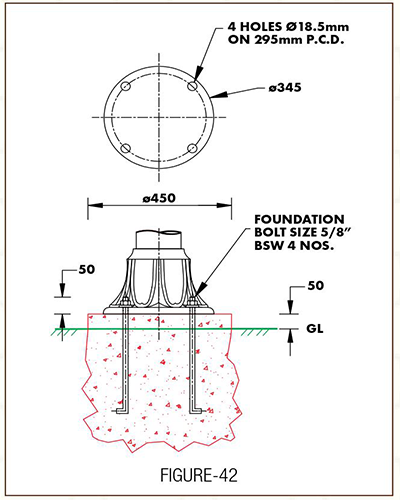

figure-42

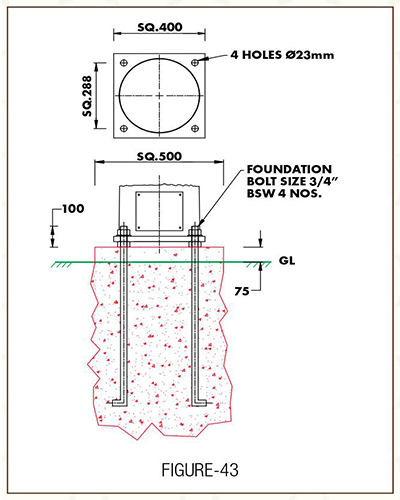

figure-43

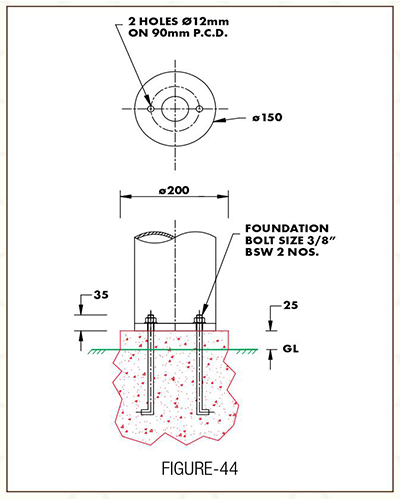

figure-44

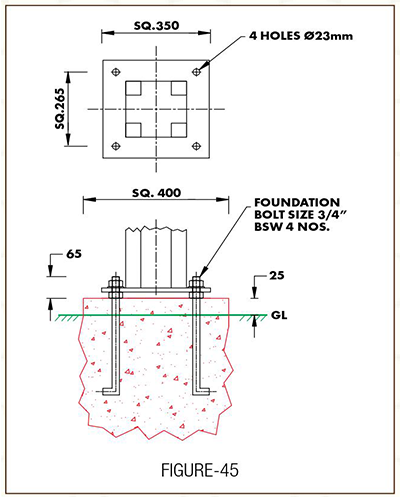

figure-45

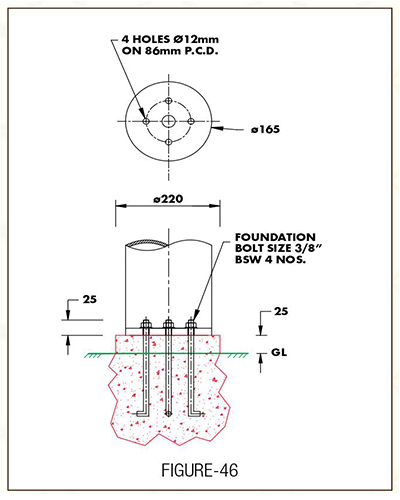

figure-46

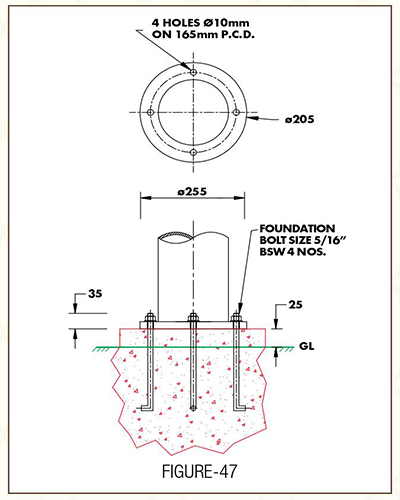

figure-47

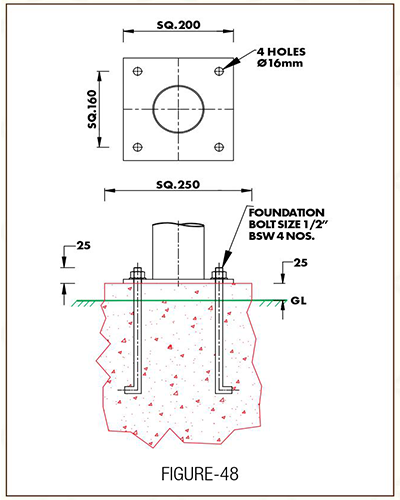

figure-48

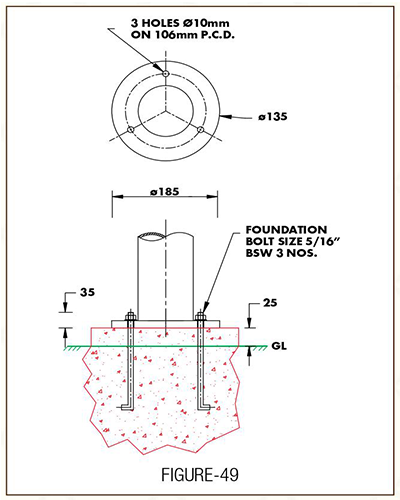

figure-49

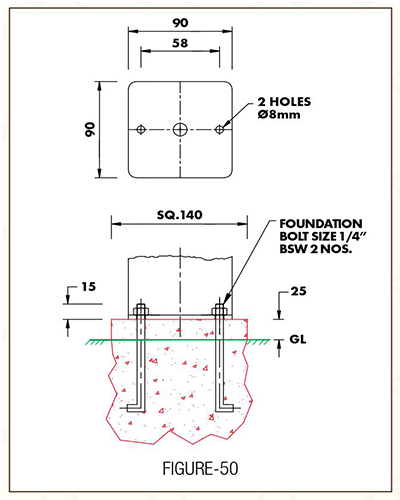

figure-50

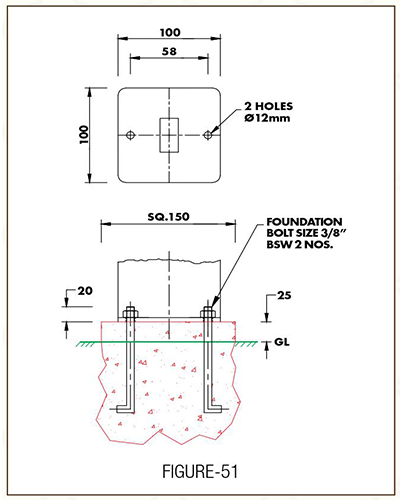

figure-51

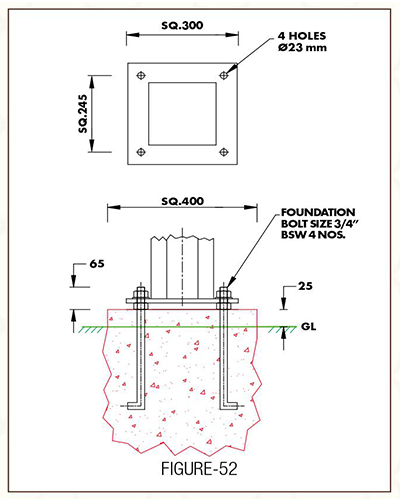

figure-52

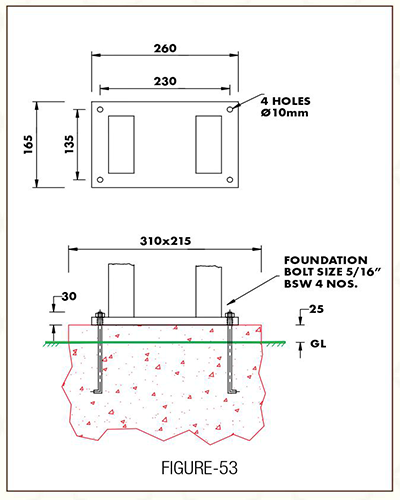

figure-53

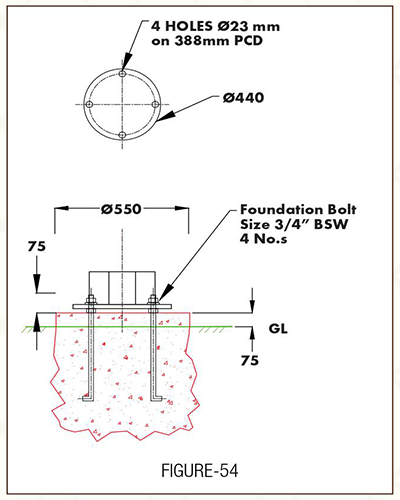

figure-54

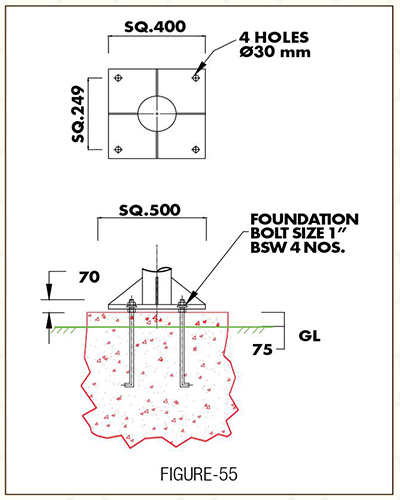

figure-55

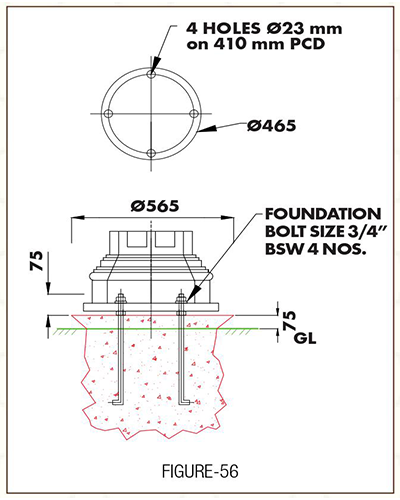

figure-56

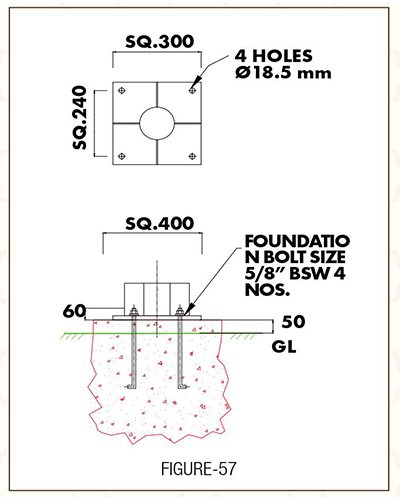

figure-57

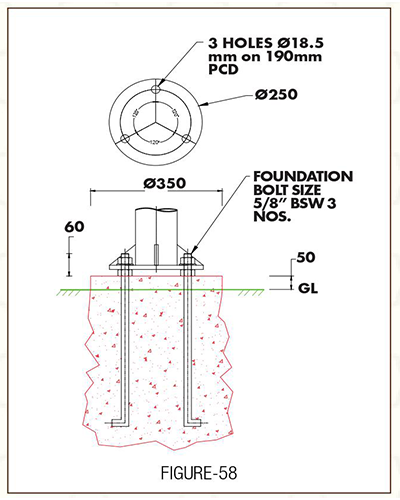

figure-58

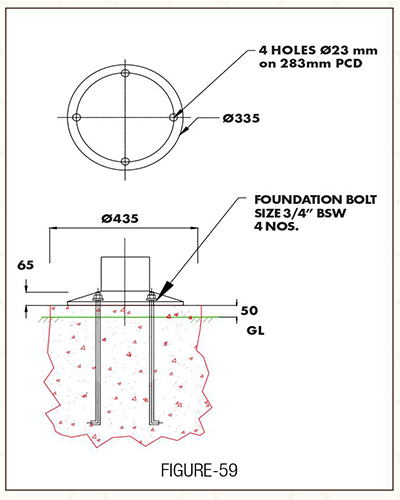

figure-59

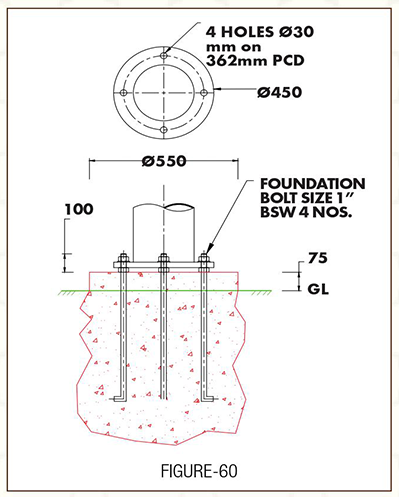

figure-60

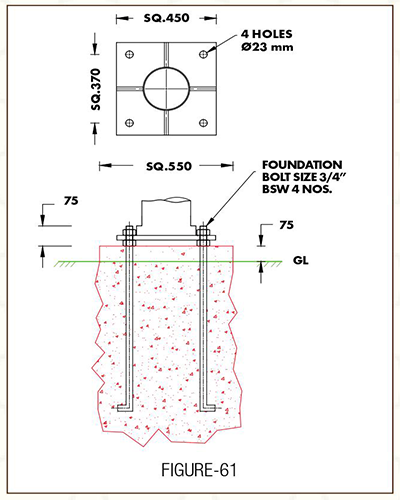

figure-61

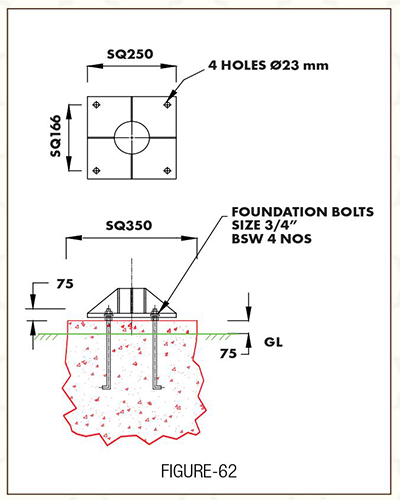

figure-62

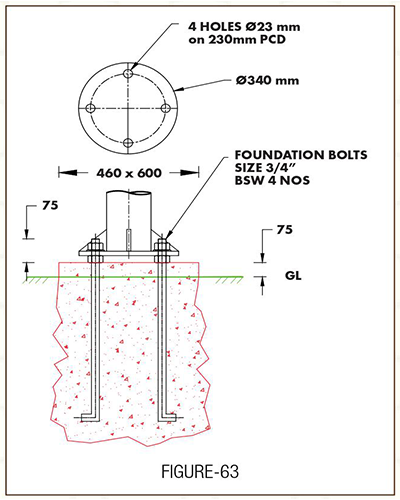

figure-63

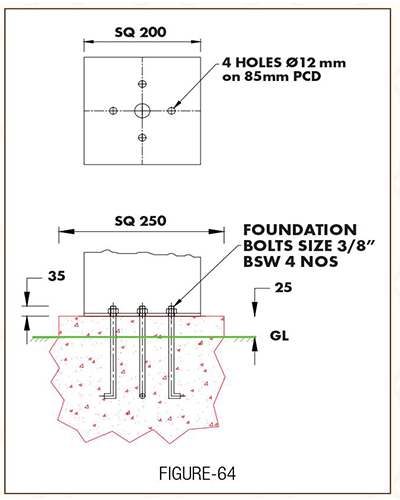

figure-64

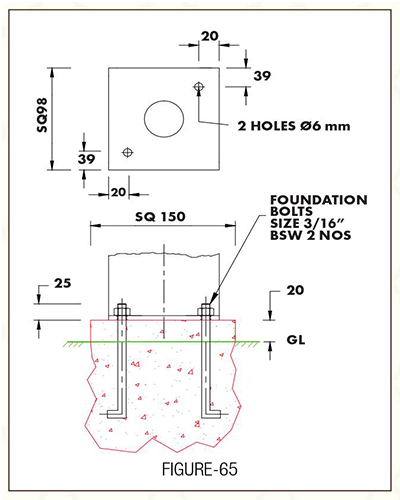

figure-65

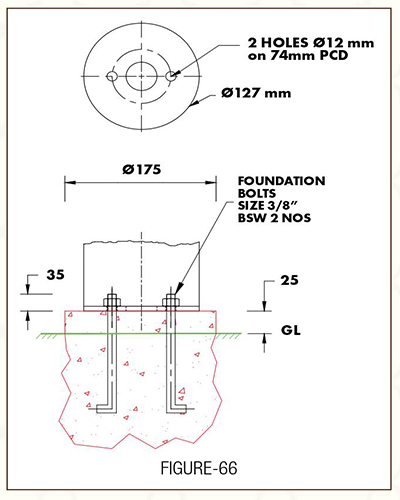

figure-66

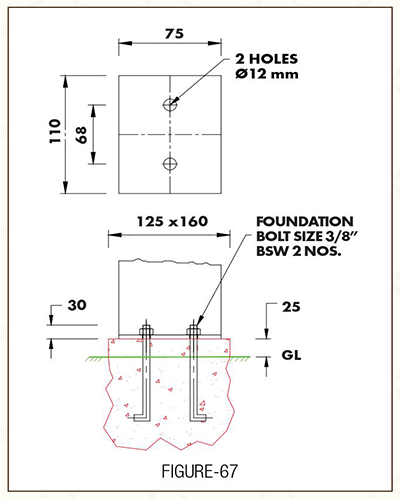

figure-67

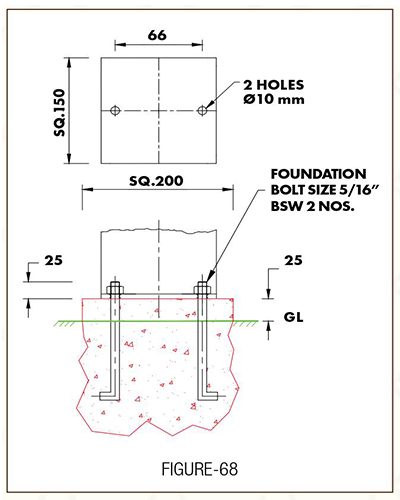

figure-68
